it is almost OK.

For community edition the checks for farmguardian are located in path /usr/lib/nagios/plugins/

cd /usr/lib/nagios/plugins

./check_http --help

*This output will give you more information about how to use the check.

Following your indications:

for farmguardian config:

check_http -I HOST -u /nidp/app/heartbeat -p PORT -e 'Success' -t 5

for command line testing purposes:

cd /usr/lib/nagios/plugins

./check_http -I backend_IP -u /nidp/app/heartbeat -p 80 -e 'Success' -t 5

It should work. If not, check if the path -u is properly configured and that you haven't missed any part in this URI.

For further testing:

curl http://backend_IP/nidp/app/heartbeat should show you a 'Sucess' string in the body as well.

Please confirm it works.

Regards!

Hi,

When I do curl https://domain.com/nesp/app/heartbeat I get an success

but when I try check_http -H domain.com/ -u /nidp/app/heartbeat -p 80 -e 'Success' -t 5

I get

HTTP CRITICAL - Invalid HTTP response received from host: HTTP/1.1 302 Found

whe you run curl :

 curl  https://domain.com/nesp/app/heartbeat  I get an success

You are doing a SSL connection

When you run:

check_http -H domain.com -u /nidp/app/heartbeat -p 80 -e 'Success' -t 5

You are not using SSL connection, use -S flag for SSL.

Regards!

This returs:

CRITICAL - Cannot make SSL connection.
806B5979FA7F0000:error:0A00010B:SSL routines:ssl3_get_record:wrong version number:../ssl/record/ssl3_record.c:354:

Can I disable the SSL check?

check the output error, it seems like the SSL version in end point or in the client check_http is not correct.

You should point to the backend in the same way the farm is configured for the backends.

It is quite important you understand what you are doing and where you are pointing to. check_http should be executed against the backends. you should ensure if the backend is in HTTP or HTTPS.

Regards

The backend is HTTPS

You can connect to HTTP, but it will redirect to HTTPS

curl https://domain.com/nesp/app/heartbeat -k

returns a success

check_http -H domain.com -p 443 --ssl -S -u /nesp/app/heartbeat -e 'Success' -t 5

returns a Success, But when I put it in the moniotoring it fails?

Glad to know you found the solution. Sometimes it isn't easy to help with something related to local configuration, as we don't have any data about this.

We will proceed to close this support request as it is solved.

Regards!

configure farmguardian command field with the following content:

check_http -H HOST -p PORT --ssl -S -u /nesp/app/heartbeat -e 'Success' -t 5

In case the HTTPS backend field is enabled, I assume your backends are configured in SSL mode.

I do Think so

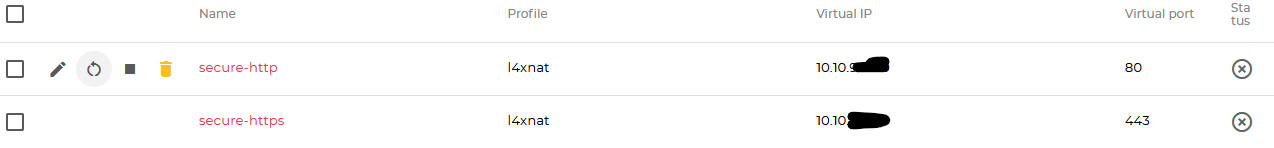

Hi, you are running 2 l4xnat farms:

For the first farm (no ssl) you have to create a farmguardian without the SSL part (--ssl -S)

For the second farm ( I assume port 443 accepts SSL traffic), you have to configure another farmguardian with the SSL part (--ssl -S)

Regards!
