Topic starter
03/02/2025 7:58 pm
Hello,

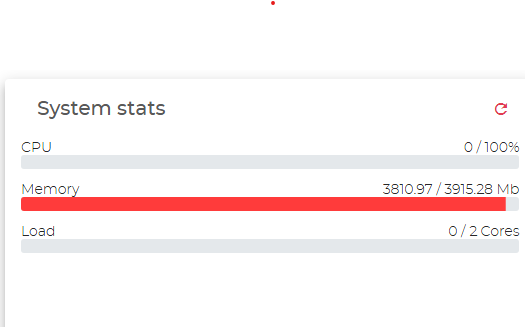

The Dashboard memory show that almost all memory is in use see attached pic.
system:
System information
label_importantSKUDONET Version: 7.2.1
label_importantWebGUI Version: 1.3.1-7.2.1
label_importantAppliance Version: SKD 7
label_importantKernel Version: 6.1.0-27-amd64
label_importantHostname: LB-SKDCE7-1
label_importantSystem Date: Mon Feb 3 20:52:01 2025
on terminal:
[master] free -m
total used free shared buff/cache available
Mem: 3915 537 125 0 3532 3377
Swap: 974 0 974
Top command:
top - 20:57:11 up 7:25, 2 users, load average: 0.00, 0.00, 0.00
Tasks: 136 total, 1 running, 135 sleeping, 0 stopped, 0 zombie
%Cpu(s): 0.7 us, 1.0 sy, 0.0 ni, 98.3 id, 0.0 wa, 0.0 hi, 0.0 si, 0.0 st
MiB Mem : 3915.3 total, 116.8 free, 545.8 used, 3533.0 buff/cache
MiB Swap: 975.0 total, 974.7 free, 0.3 used. 3369.5 avail Mem
please advise how to fix cpu dashboard usage.
Regards,
Yohai
04/02/2025 8:21 am
Good day @yohai, when you login on the dashboard many requests are sent at the same time to fill all the widgets, this increases the CPU usage for a seconds, so it is normal. But if you refresh the memory widget once the dashboard is loaded you will see how the memory will decrease sustantially to normal values.
It is not a problem to increase memory for a moment as the API is refreshing stats values or capturing data for the web GUI, the problem would be to keep memory usage in high values during a period of time without any load balancing service running.
I hope it solves your doubts.
Thanks!
