In this section, users will learn how to configure a Default Gateway for both IPv4 and IPv6 in the global routing table within the load balancer. A default gateway gives Internet access to devices on a LAN. This will be through ZEVENET load balancer.

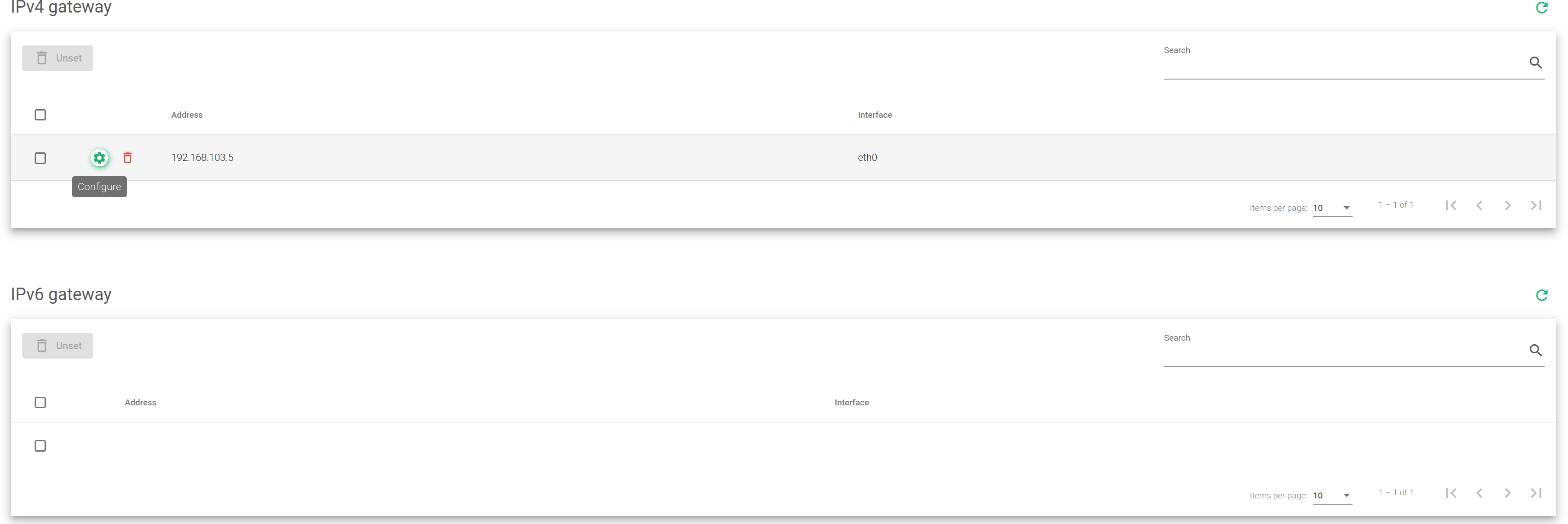

The tables in the figure below show the default Gateways used by the load balancer in both IPV4 and IPV6.
Address. The IP address of the default gateway. The appliance supports both IPv4 and IPv6.
Interface. The local interface to be used by the default gateway for outbound traffic.
Actions. Use these actions to manage the default gateway:
- Configure. Configures the default gateway for the load balancer in its respective stack.
- Unset. Removes the configuration and its default gateway.
