In this section, you will be able to create GSLB farms.

Create Farm GSLB

After selecting the Create Farm action from the Actions button, a new panel is shown.

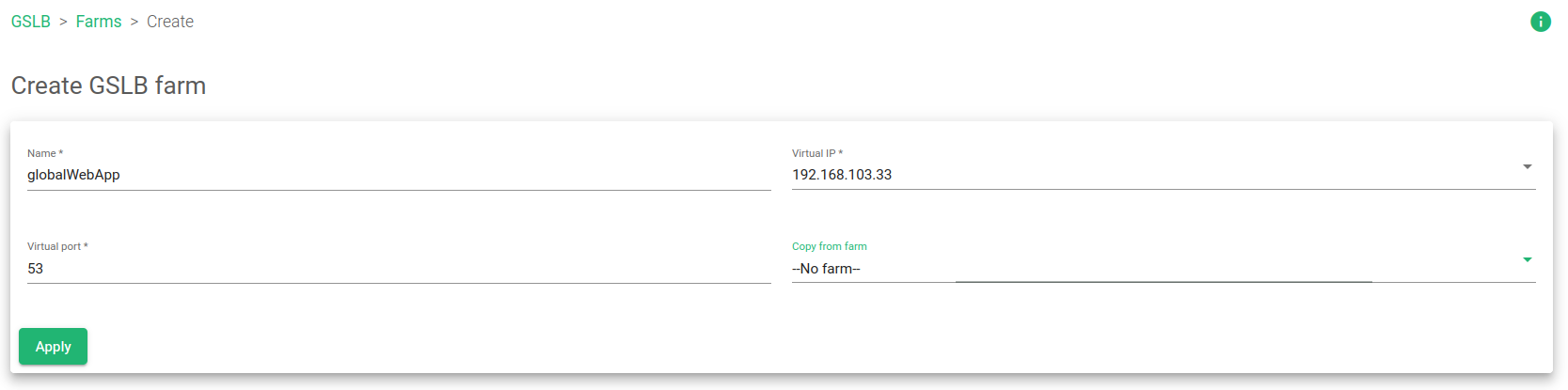

To create a GSLB farm, go to GSLB >> Farms and then click on the Actions menu, and select Create Farm. This will show a form with the minimum required configuration for a GSLB farm:

Name. The farm identification name.
Virtual IP. Assign a network interface and IP address to the new farm.
Virtual Port. Assign a dedicated port to the new farm. By default, the GSLB is a DNS service and its standard port is 53 UDP.
Copy from farm. Check and copy the configuration of another Farm.

Once the new farm details have been entered, press the Create button.

Next step, configure the GSLB farm properties.
