IPDS | RBL | Rules Update

Global Settings for RBL rules

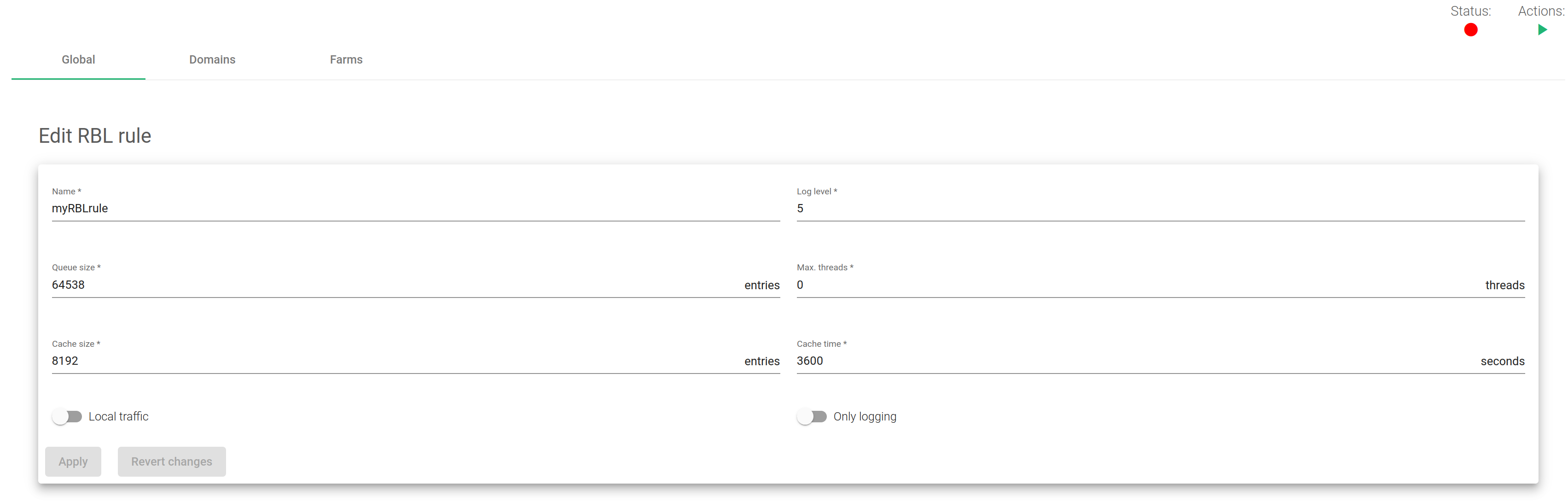

The configurable options of every RBL rule are described below.

Name. The descriptive name of the current rule.
Log Level. A number from 1 to 5 indicates the level of log detail to be stored in the directory /var/log/syslog.
Local traffic. If activated, it tries to resolve in DNS local private IP traffic (,, and
Queue size. Several max connections are stored in the queue waiting to be processed.
Cache size. Several cached entries are saved during the time specified in Cache Time.
Max Threads. Specifies the number of connection processes in parallel. 0 means unlimited.
Cache time. Specifies how long the resolved DNS IPs are saved in Cache.
Only Logging. Does not block any connection, but log them.

Once you modify one or more of the previous parameters, press the Apply button for changes to take effect.

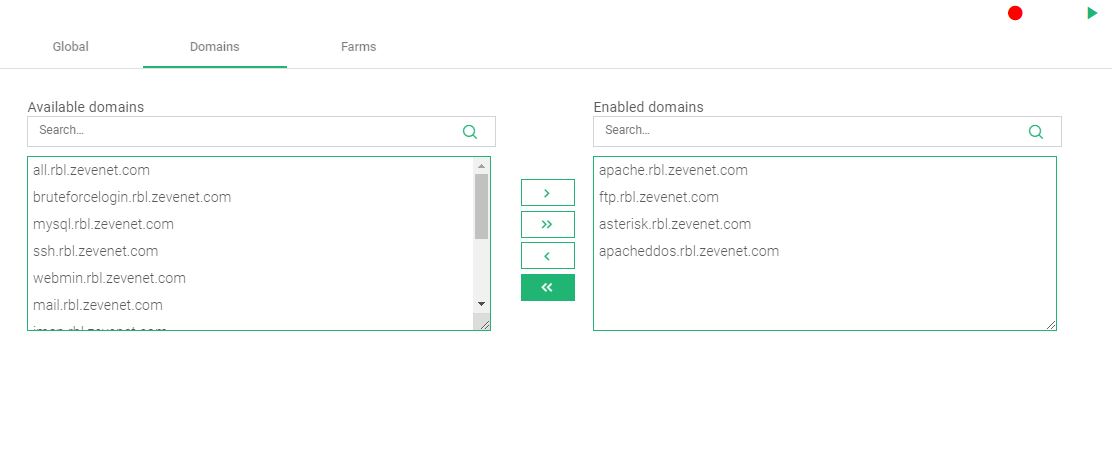

Here you will find a list of available domains under the Available Domains box. Domains can be enabled or disabled by moving them from the right to the left box by selecting them and clicking on the single right or left arrow. All domains can also be enabled or disabled using double arrows.

Each of the domains keeps an updated list of blacklisted IP addresses.

You could use a preloaded domain list, but you could also add your custom domains. This can be achieved in the Domain Section you will find in the left main menu. Please, visit IPDS >> RBL >> Domains for further information.

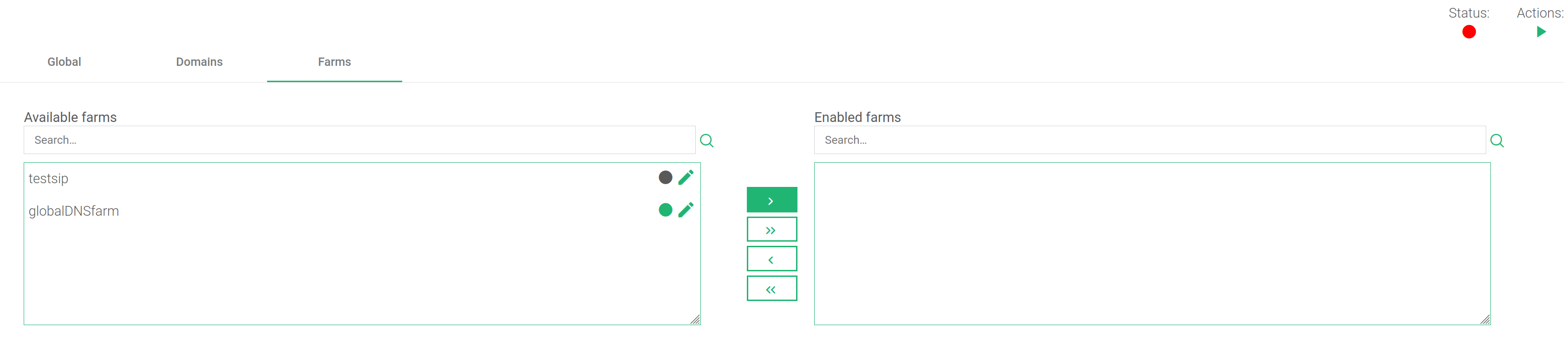

In this section, you will find a list of the farms available. You could add or remove farms from the list using the arrow buttons.
