The Settings section for the current blacklist has two tabs; Global and Farms.

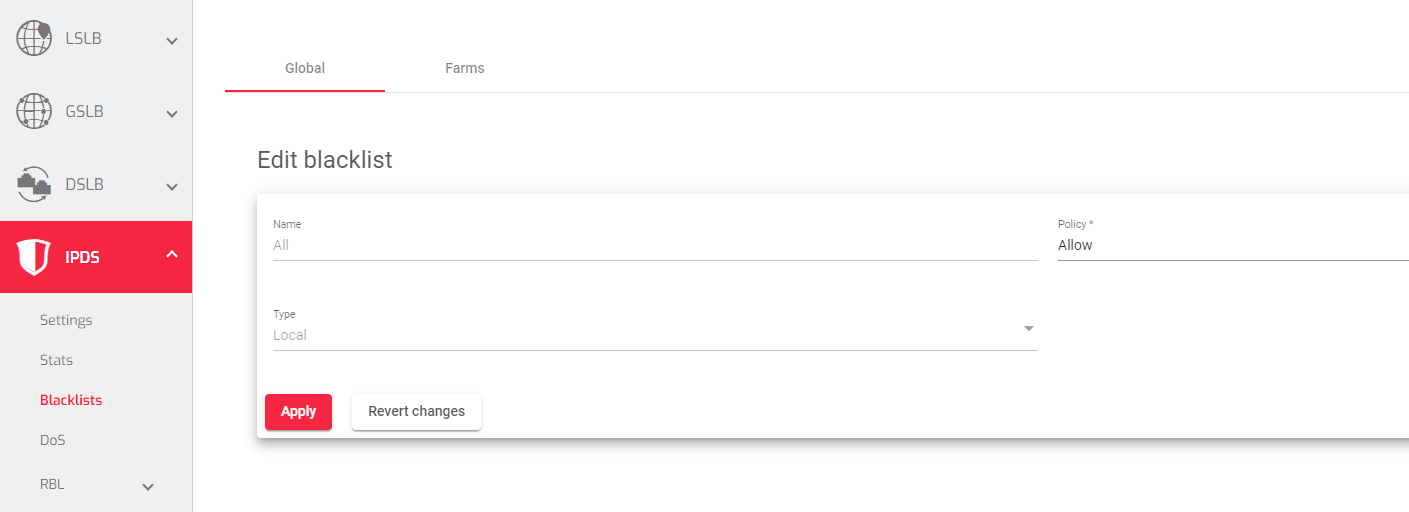

The Global Configuration tab for both Local and Remote blacklists includes the Name, Type, and Policy fields. If the blacklist is preloaded, you cannot change its name. You can only edit blacklists that you created yourself.

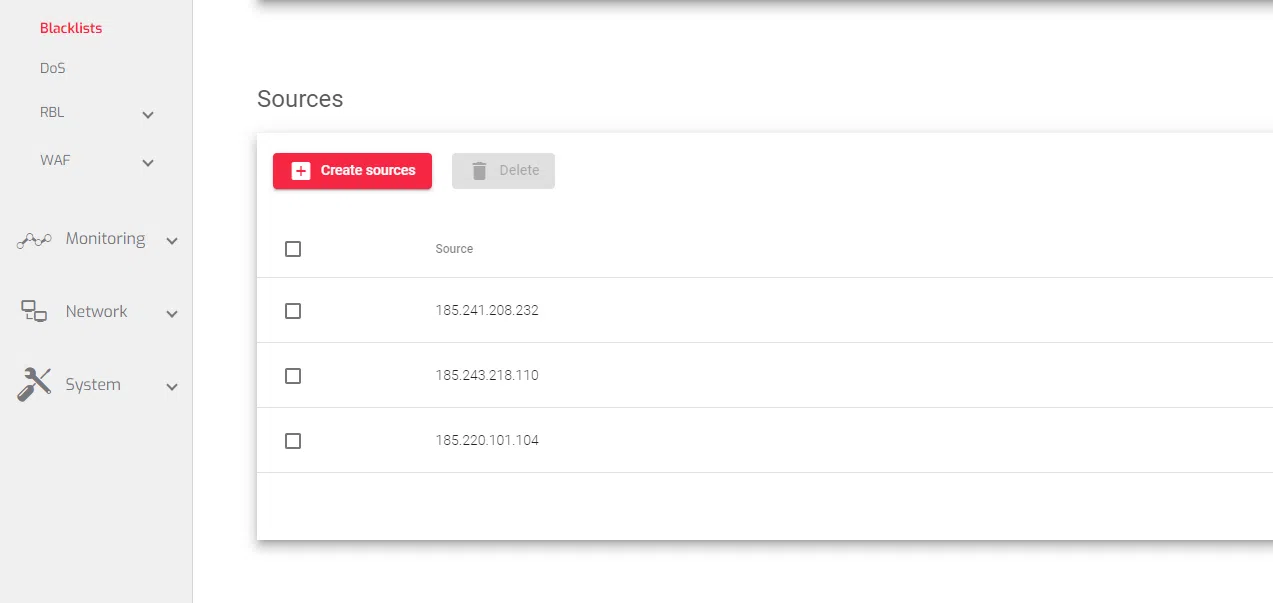

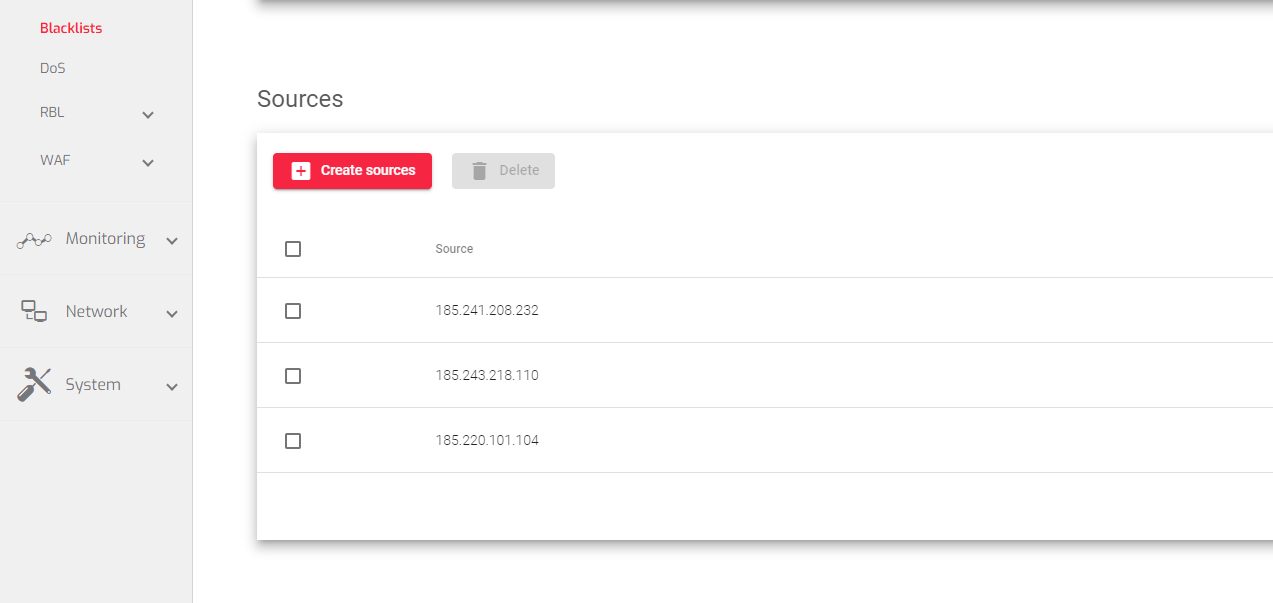

For Local Blacklists, you need to add the IP addresses or subnets that you want to Block or Allow in the Sources section.
Here is a brief description of Each field in the image above from Global settings:
- Name: Give the rule a clear and descriptive name so that it is easy to identify.
- Type: We are configuring a local rule, which means that we will manually enter a list of custom IP addresses.
- Policy: Choose whether to allow or deny traffic from the custom IP addresses.

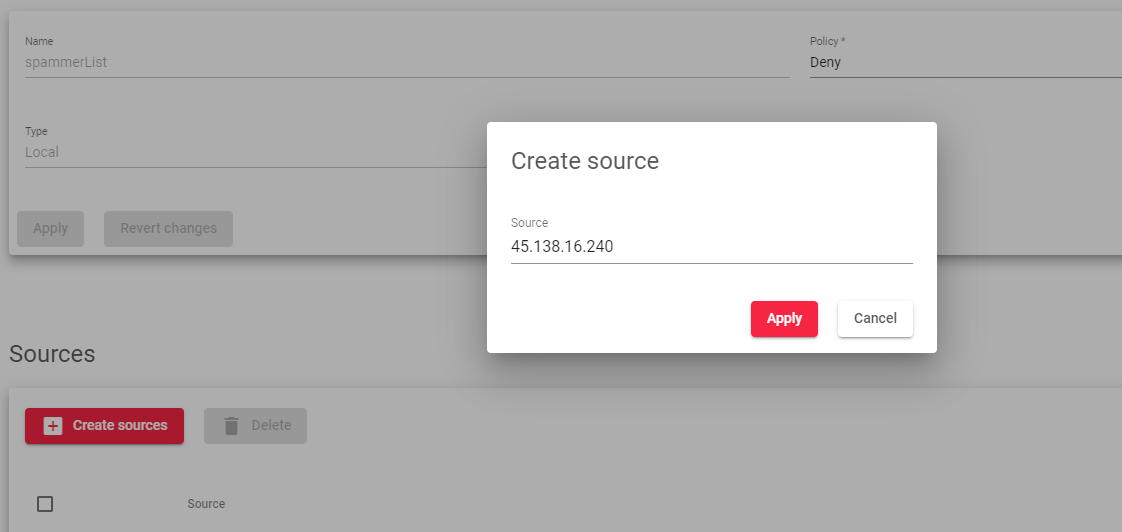

Adding a source
To add a source:
- Click the Create resources button.
- Enter an IP address or a Subnet in the Source field in the form that appears.
- Click the Apply button.

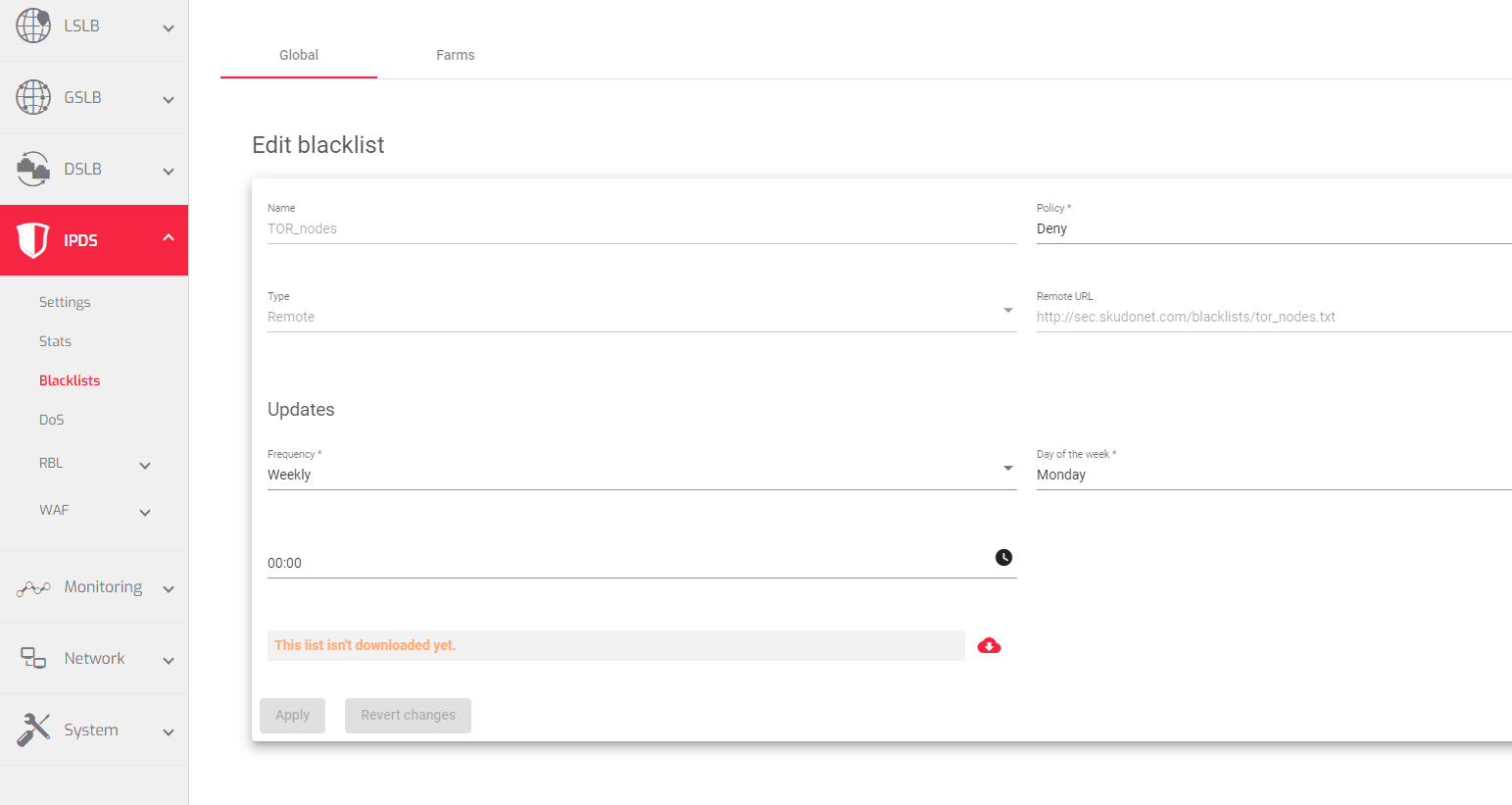

Remote Blacklist Global Configuration
The Updates section allows you to schedule downloads and updates for remote blacklists. To download the blacklist specified in the URL field, click the Green cloud icon. This will allow you to test the URL link without having to wait for the scheduled update.
Frequency: Choose how often you want the blacklist to be updated. You can choose daily, weekly, or monthly updates:
- Dayly: You can update the list multiple times a day or specify a specific time for the daily update.
- Weekly: Choose a day of the week for the update and specify a time.
- Monthly: Select a day of the month and a specific time for the update.
Remote URL: The remote file containing the blacklist must be in plain text format, with each IP address or subnet on a separate line.
Below is an example of the list from a url resource:
Each line in the example above represents a single IPv4 address. To include a subnet range, use the following format: ipv4_address/bits. For example, 126.96.36.199/24 will include all IP addresses from 188.8.131.52 to 184.108.40.206.

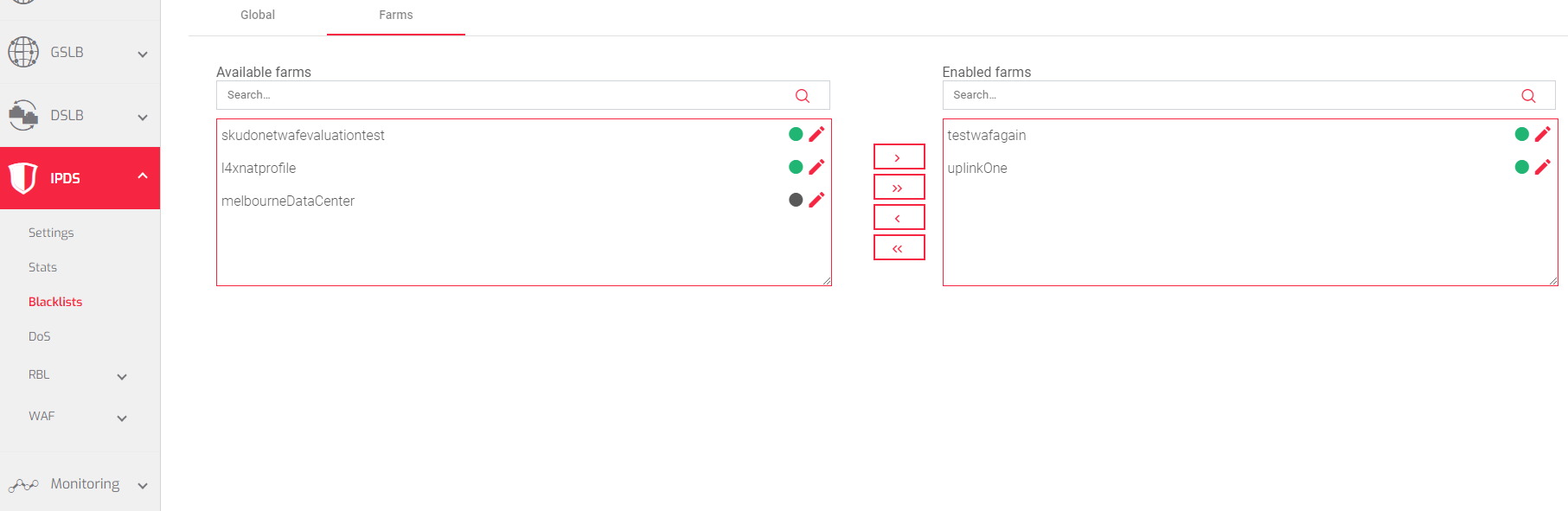

Farms Blacklist Configuration
In this section, you can select one or more farms to associate or disassociate the blacklist rule. You can also apply or revoke the rule from all available farms using the double arrow buttons.
