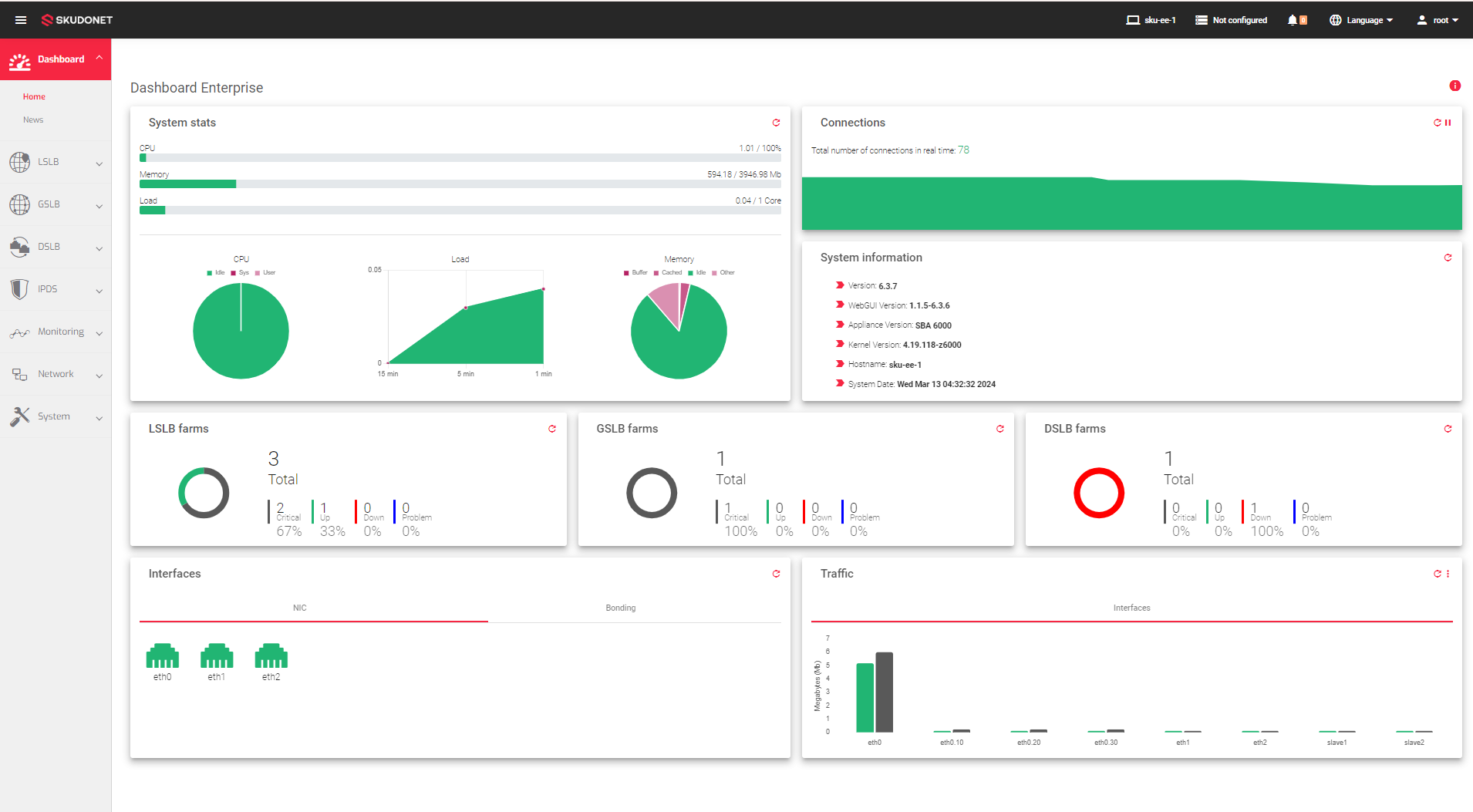

The Dasbhoard page is divided into six main sub-sections:
- System Stats
- System Information
The System stats sections shows how much CPU, Memory, and Load are being used by the SKUDONET Appliance.
At the top right corner, there is a Green refresh button. Once clicked, the data on each graph will update.
- Idle: The percentage of CPU resources that are not in use.
- Sys: The percentage of CPU resources that are being used by kernel processes, such as L4 farms and network drivers.
- User: The percentage of CPU resources that are being used by user-space processes, such as HTTP/S load balance cores and the administration web server.
The memory usage section on the dashboard provides a snapshot of how the system’s memory is being used. It shows the amount of memory that is being used by buffers, cached data, idle memory, and other system processes.
- Buffers: Memory used to bridge the speed gap between the processor and storage.
- Cached: Fast memory on the processor that stores frequently accessed data.
- Idle: Memory available for the system to use for new or existing processes.
- Others: Memory used by the kernel and other system processes.
One can also manually refresh the graph by clicking the Green refresh button in the top right corner.
- SKUDONET version
- Appliance version and hypervisor
- Kernel version
- System date
- LSLB: This farm load balances virtual services and applications at Layer 4 (Transport layer) through the L4xNAT profile and at Layer 7 (Application layer) through the HTTP profile. It supports a variety of protocols, including TCP, UDP, SIP, FTP, TFTP, SCTP, AMANDA, H323, IRC, NETBIOS-NS, PPTP, SANE, SNMP, HTTP, and HTTPS. More info
- DSLB: This farm load balances Layer 3 (network layer) traffic using dynamic load balancing routing, also known as SD-WAN. More info
- GSLB: This farm load balances domains and data centers using DNS to correctly distribute traffic to the right data centers. More info
Each farm profile shows the total number of servers in the farm and their status. The status can be one of the following:
- Critical: The farm is up, but none of the backend servers are reachable. This could be because the servers are down, or because they are in maintenance mode.
- Up: The farm is running normally.
- Down: The farm is completely stopped.
- Problem: The farm is up, but at least one of the backend servers is not reachable or is having a problem.
The Traffic section provides information about both inbound and outbound traffic for each interface on the SKUDONET ADC. This information can be used to monitor network performance, identify potential security threats, and troubleshoot network problems: We traffic both inbound and outbound traffic.
- Inbound traffic: The amount of data received by the SKUDONET ADC from external sources, such as clients or other servers.
- Outbound traffic: The amount of data sent by the SKUDONET ADC to external sources.
- Green Inbound Traffic
- Gray Outbound Traffic
