LSLB | Stats | Backends

POSTED ON 8 November, 2023

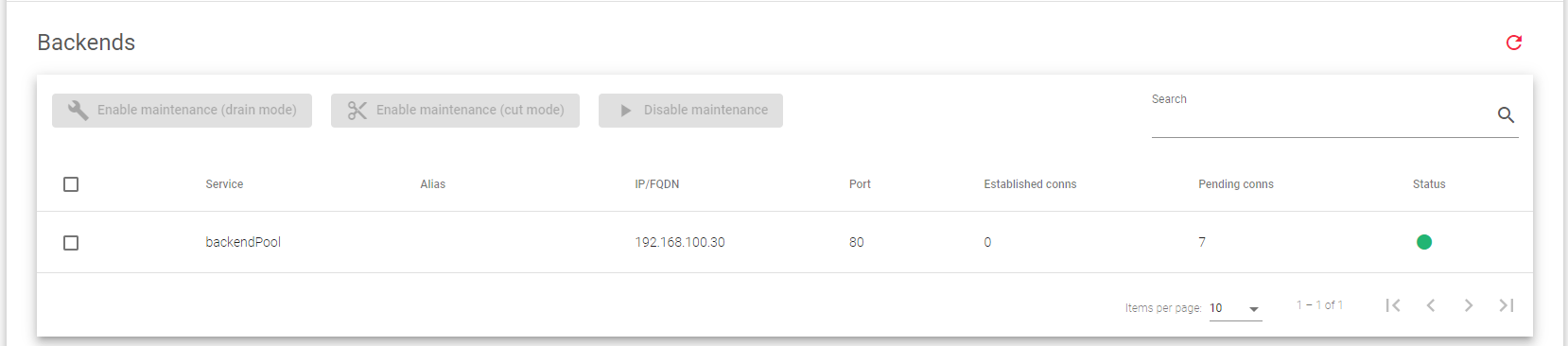

Backends Table:

oracle_jd_edwards_load_balancing_farm

The columns in this table include:

Service: The name of the farm service where the backend is configured. This column only appears in HTTP(s) farms.
Alias: The alias of the backend, if one is configured.
IP: The IP address of the backend.
Port: The port of the backend.
Established Conns: The number of established connections to the backend.
Pending Conns: The number of pending connections to the backend.
Status: The current status of the backend. The following status color codes are used:

  • Green: The backend is running normally.
  • Orange: The backend is in maintenance mode.
  • Red: The farm is up but the backend is unreachable.

Sessions Table

oracle_jd_edwards_load_balancing_farm
This table shows the established sessions for each backend server. The columns in this table are:

  • Service: The name of the farm associated with the client session.
  • Persistence session: The identifier used for the persistence between the client and the backend.
  • Backend IP: The IP address of the backend server to which the session is connected.
  • Backend PORT: The port of the backend server to which the session is connected.

Next Article: LSLB | Stats | SSL Certificates
